EP-HBS Harvester Bearing Support — Precision Shaft Housing for Combine Drivelines
EP-HBS Harvester Bearing Support — Product Overview
The Invisible Critical Component
Every combine harvester driveline includes rotating shafts that span the distance between gearboxes. When these shafts exceed a certain unsupported length, they develop vibration, whip, and deflection that accelerate bearing failure in the connected gearboxes and generate noise that masks more serious mechanical problems. The EP-HBS bearing support housing solves this by providing a rigid, precisely located intermediate bearing point that breaks the long shaft span into two shorter, stiffer segments — eliminating the vibration before it starts.
No Gears, No Ratio — Pure Structural Precision
Unlike every other product in Korea Ever-Power’s agricultural catalog, the EP-HBS contains no gears and performs no speed change. Its function is exclusively structural: it houses a precision bearing assembly that supports a rotating shaft at a specific point along the driveline, maintaining the shaft’s centerline alignment within ±0.02 mm of the design position. This alignment precision prevents the angular misalignment that causes premature universal joint wear, coupling fatigue, and gearbox input-bearing failure in long-span driveline architectures.

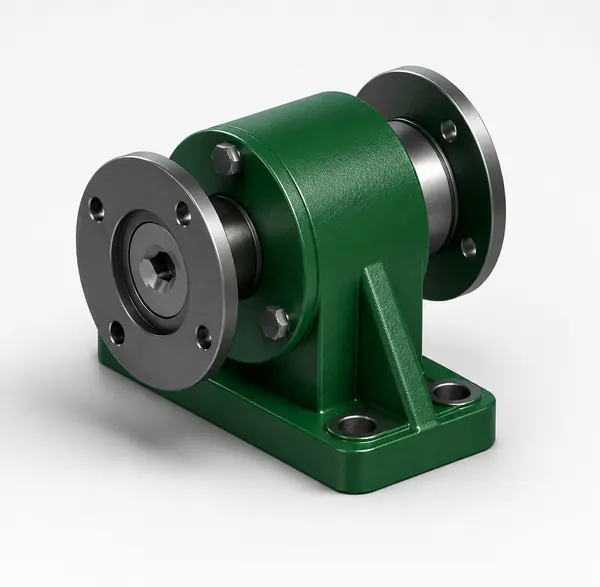

CNC-Machined HT250 Housing
The EP-HBS housing is CNC-machined from the same HT250 high-strength cast iron used in Korea Ever-Power’s gearbox range. The bearing bore is finished to the same ±0.02 mm tolerance as gearbox bearing seats, ensuring that the shaft runs true within the support housing. The mounting interface bolts directly to the harvester chassis with the same rigidity standards as a structural gearbox housing, because the EP-HBS’s job is fundamentally about positional accuracy under load.

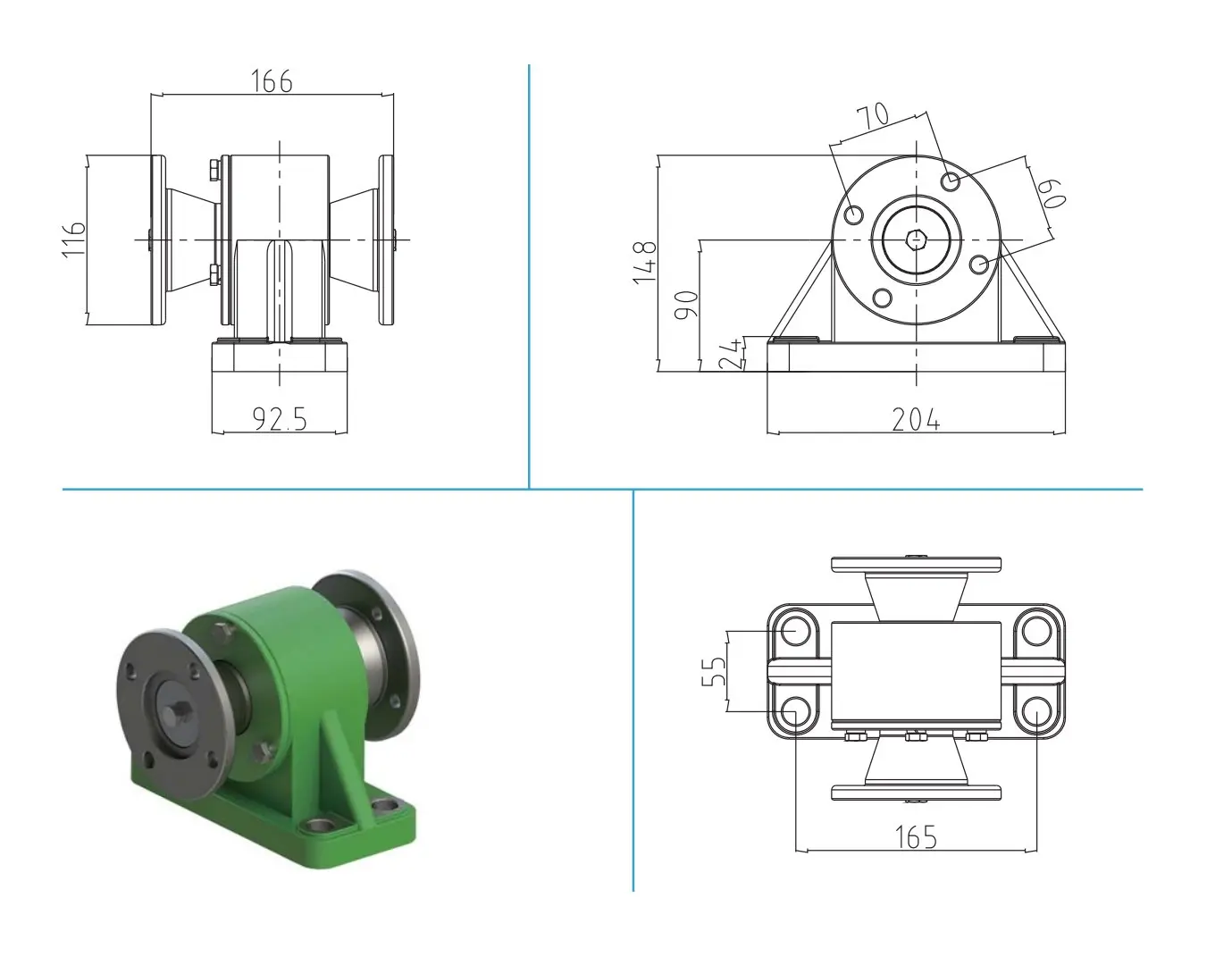

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Bearing support housing (no gears, no ratio) |
| Function | Intermediate shaft support, alignment maintenance, vibration control |
| Bearing Type | Deep-groove ball bearing or taper roller (application-dependent) |
| Bore Tolerance | ±0.02 mm (CNC finish-machined) |
| Shaft Speed Rating | Up to 600 rpm continuous |
| Housing Material | HT250 cast iron, CNC finish-machined |
| Mounting | Bolt-on chassis mount with pilot bore registration |
| Sealing | Double-lip seal on both sides, grease-lubricated |
| Lubrication | Grease-packed bearing with grease nipple for periodic re-greasing |
| Application | Combine harvester propeller shaft intermediate support |
Why Driveline Bearing Supports Are Critical
A bearing support may seem like a simple bracket, but its absence or failure produces cascading damage throughout the harvester driveline. Understanding the three failure modes it prevents explains why the EP-HBS is an essential component:
Shaft Whip Vibration
An unsupported shaft span rotating at 300–500 rpm develops lateral oscillation (whip) when its length exceeds the critical span for its diameter. This whip generates cyclic bending stress that fatigues the shaft, destroys universal joints at both ends, and transmits vibration to the connected gearbox bearings. The EP-HBS breaks the span in half, pushing the critical speed well above the operating RPM range.
Angular Misalignment
When the harvester chassis flexes over rough terrain, an unsupported shaft deflects and changes its angular alignment relative to the gearbox input and output shafts. This misalignment forces the universal joints to operate at angles beyond their design limits, causing accelerated wear, heat generation, and eventual joint seizure. The EP-HBS provides a fixed reference point that constrains shaft movement within safe alignment tolerances.
Gearbox Bearing Overload
Without intermediate support, the connected gearbox input bearings must carry the full radial load of the unsupported shaft span — including its weight, centrifugal imbalance, and dynamic loads from field vibration. The EP-HBS absorbs these radial loads at the intermediate point, reducing the force on gearbox bearings by up to 50% and extending their L10 service life proportionally.
Precision Bearing Support Engineering
CNC Bore Accuracy
The EP-HBS’s bearing bore is CNC-machined to the same ±0.02 mm tolerance as Korea Ever-Power’s gearbox bearing seats. This precision ensures that the bearing’s outer race seats perfectly against the housing bore without distortion or uneven loading. A loose bore causes the bearing to creep within the housing, generating heat and fretting wear. An overly tight bore pre-loads the bearing and accelerates ball or roller fatigue. The EP-HBS achieves the exact interference fit specified by the bearing manufacturer for maximum service life.
Double-Lip Seal Protection
Agricultural environments are among the harshest for bearing operation: fine dust from grain threshing, clay particles from field soil, water from rain and irrigation, and straw debris all attack exposed bearings. The EP-HBS uses double-lip seals on both sides of the bearing housing, creating two barriers against contaminant ingress. The inner seal retains grease within the bearing cavity, while the outer seal blocks external debris. This dual-barrier approach extends bearing life from the 500–800 hours typical of single-sealed field bearings to 2,000+ hours in the EP-HBS’s protected environment.
Grease-Lubricated with Re-Greasing Access
Unlike oil-bath gearbox bearings, the EP-HBS bearing is grease-packed and includes a standard grease nipple for periodic re-greasing without disassembly. The operator simply pumps fresh grease through the nipple during routine maintenance, flushing old grease and contaminants out through the seal lips. This re-greasing capability is essential for agricultural applications where bearing contamination is inevitable despite seal protection — fresh grease replenishes the lubricant film and purges micro-particles before they can cause abrasive damage.
Where the EP-HBS Fits in the Harvester Driveline
In Korea Ever-Power’s tandem driveline system, the EP-HBS typically mounts at the midpoint of the propeller drive shaft between the EP-HRDF50 front box and the EP-HRDR50/60 rear box. The complete power path is:
By positioning the EP-HBS at the midpoint, the total propeller shaft span is divided into two equal segments. Each segment operates well below its critical speed threshold, and the radial loads on both the front-box output bearing and the rear-box input bearing are reduced by approximately 50% compared to an unsupported full-span shaft.
Application Scenarios
Long-Chassis Tandem Driveline Harvesters
Large Korean combine harvesters with extended chassis lengths position the front-drive gearbox and rear-drive gearbox more than 1,000 mm apart. Without the EP-HBS, the propeller shaft spanning this distance would operate near or above its critical whip speed, generating destructive vibration. The bearing support breaks this span into two safe segments, enabling smooth, quiet operation throughout the harvesting season.
Vibration Troubleshooting
If an existing harvester exhibits driveline vibration that increases with engine speed, a worn or missing intermediate bearing support is a common cause. Retrofitting the EP-HBS to the propeller shaft midpoint often resolves the vibration completely — a less expensive fix than replacing the gearbox bearings that the vibration would eventually destroy if left uncorrected.
OEM New-Build Integration
Harvester manufacturers designing long-chassis models specify the EP-HBS as a standard driveline component alongside the EP-HRDF50 front box and EP-HRDR50/60 rear box. The CNC-machined housing dimensions are guaranteed consistent across production batches, so the bearing support drops into the assembly jig at the same position on every unit without individual fitment adjustment.
Why Choose the EP-HBS
Eliminates Shaft Vibration
Divides long propeller shaft spans into two shorter segments, pushing the shaft’s critical whip speed well above the operating RPM range. Smooth, vibration-free power transmission protects all connected driveline components.
50% Gearbox Bearing Load Reduction
The intermediate bearing absorbs shaft radial loads at the midpoint, reducing the force on front-box and rear-box bearings by approximately half. This directly extends gearbox bearing L10 life and reduces maintenance costs.
2,000+ Hour Bearing Life
Double-lip seals plus grease re-greasing access extend bearing life well beyond typical agricultural duty cycles. Re-grease at scheduled intervals without disassembly — fresh grease purges contaminants before they cause damage.
CNC Gearbox-Grade Precision
The bearing bore is machined to the same ±0.02 mm tolerance as Korea Ever-Power gearbox bearing seats. No compromise on alignment accuracy — every EP-HBS unit is dimensionally identical for true drop-in installation.
Installation & Maintenance
Mounting Procedure
❶ Determine the midpoint of the propeller shaft span between the front-drive and rear-drive gearboxes. Fabricate or use the existing chassis mounting bracket at this position.
❷ Slide the EP-HBS housing onto the propeller shaft. Align the housing mounting bolt holes with the chassis bracket. Insert bolts finger-tight.
❸ Using a dial indicator or laser alignment tool, verify that the shaft runs true within the EP-HBS bearing bore — radial runout should not exceed 0.05 mm at the bearing position.
❹ Torque all mounting bolts to specification. Pack the bearing with the recommended grease through the grease nipple until fresh grease appears at the seal lips.
❺ Run the driveline at low speed and verify smooth rotation with no vibration, heat, or abnormal noise at the bearing support location.
Maintenance Schedule
◆ Every 100 hours — Pump 2–3 strokes of lithium-complex EP grease through the grease nipple.
◆ Every 500 hours — Inspect bearing for noise and temperature by hand after operation. A warm bearing is normal; a hot bearing indicates contamination or wear.
◆ Every 1,000 hours — Check shaft radial play at the bearing point. Replace the bearing if play exceeds 0.1 mm.
◆ Every 2,000 hours — Preventive bearing replacement even if no symptoms are present.
◆ End of harvest season — Final grease application before storage; inspect mounting bolts for fatigue.
Companion Products & Tandem Driveline Components
Complete Tandem System
The EP-HBS completes Korea Ever-Power’s tandem harvester driveline system: EP-HRDF50 front box (11 ratios, speed selection) + EP-HBS bearing support (shaft alignment) + EP-HRDR50 or EP-HRDR60 rear box (1 : 1 axle interface). Contact our engineering team to specify a matched three-component system for your harvester model.
Off-Season Equipment
Between harvest seasons, farms equip tractors with rotary cultivator gearbox assemblies for tillage and round baler gearbox units for straw management. Korea Ever-Power supplies the complete seasonal equipment range.
Frequently Asked Questions
Customer Reviews & Field Reports
★★★★★
“We specify the EP-HBS on all long-chassis combine models alongside the EP-HRDF50 and EP-HRDR50. The bearing support completely eliminated the propeller shaft vibration complaints we received on early prototype units that lacked an intermediate bearing. CNC bore accuracy is identical to our gearbox bearing seats — the EP-HBS is a true precision component, not a generic bearing bracket.”
OEM Buyer · Standard specification · Long-chassis combine manufacturing
★★★★★
“My combine developed a persistent driveline vibration that increased with engine speed. A mechanic diagnosed a worn intermediate bearing support. I replaced it with the EP-HBS — the vibration disappeared completely. I later learned that the old bearing had been causing premature wear on my rear gearbox input bearing. Replacing the EP-HBS saved me from a much more expensive rear-box repair.”
Verified Purchase · Vibration troubleshooting · Contract harvesting
★★★★★
“We stock the EP-HBS alongside the complete Korea Ever-Power harvester gearbox range. It is one of our highest-turnover items because bearing supports are the most frequently replaced component in the tandem driveline — they protect the expensive gearboxes by absorbing the worst of the field vibration. Quality is consistent and the grease nipple design makes field service straightforward for our customers.”
Wholesale Buyer · High-volume aftermarket · Japanese harvester service
★★★★☆
“Our cooperative replaces EP-HBS bearings at every 2,000-hour preventive maintenance interval across our fleet of 20 combines. The housing itself is reusable indefinitely — only the bearing insert needs replacement. Only 4 stars because we wish the grease nipple were positioned slightly higher for easier access when the combine is assembled — currently it requires reaching under the chassis.”
Group Purchase · 20 units · Fleet preventive maintenance program
★★★★★
“We retrofit EP-HBS bearing supports onto older Korean-brand combines that originally shipped without intermediate bearing support. Adding the EP-HBS at the propeller shaft midpoint is the single most effective driveline upgrade we offer — it extends both gearbox and universal joint life dramatically. Our customers report noticeably smoother, quieter operation immediately after installation.”
Verified Purchase · Retrofit specialist · Vietnamese harvester aftermarket
