The Core of Precision Mowing:
Mower Deck Gearboxes for Riding Mowers & Lawn Tractors
Optimized Vertical Power Transmission for Korean Terrain | Spiral Bevel Silent Technology | 540/2000 RPM Adaptable
Mower Deck Gearbox: The Heart of Turf Care Machinery
In the maintenance of golf courses in Gyeonggi-do and resort lawns in Jeju Island, Riding Mowers and Lawn Tractors are indispensable high-efficiency equipment. The core operating component of these machines is the Mower Deck at the bottom, and the key to driving this component is the Mower Deck Gearbox.
Typically mounted at the top center or offset position of the mower deck, the primary task of this gearbox is Power Steering. While the tractor’s PTO or engine usually provides horizontal rotational power, mower blades require high-speed vertical rotation for a perfect flat cut. Our agricultural gearbox utilizes precision bevel gear sets to instantly convert horizontal input into vertical output to drive the cutting blades. For large wide-area mowers, multiple gearboxes are often connected in series via drive shafts to cover wider working widths.
Beyond steering, the gearbox is responsible for Speed Matching. Standard engine or PTO speeds (e.g., 540 RPM or 2000 RPM) are often not directly suitable for mowing. Through internal reduction or speed-up gear ratios, we precisely control the output speed to the optimal blade tip speed range (typically 70-90 m/s), ensuring clean cuts while preventing excessive noise and energy consumption caused by over-speeding.
Diagram of a right-angle gearbox mounted on top of a mower deck.
Technical Specs: MD-Series Mower Gearbox
The following parameters are based on standard models supplied by EVER-POWER for mainstream lawn tractors. We support OEM customization for specific input speeds and mounting flanges for Korean clients.
| Parameter | Specification Value | Engineering Note |
|---|---|---|
| Input Power Range | 15 HP – 90 HP | Covers residential to commercial models |
| Input Speed | 540 RPM / 2000 RPM | Adapts to different PTO standards |
| Ratio | 1:1.2 / 1:1.47 / 1:1.93 (Speed up) | Optimized for blade tip speed |
| Output Torque | 120 Nm – 650 Nm | Matched to blade diameter |
| Gear Type | Spiral Bevel Gears | Low noise, high contact ratio |
| Gear Material | 20CrMnTiH Alloy Steel | Precision forged, carburized |
| Housing Material | QT450-10 Ductile Iron / Die-cast Aluminum | Impact resistant Iron or Lightweight Aluminum |
| Input Shaft | 1-3/8″ Z6 Spline / Ø25mm Keyed | Standard PTO interface |
| Output Shaft | Ø30mm / Ø40mm Tapered | With flange for blade holder |
| Lubrication | Oil Bath / Semi-fluid Grease | SAE 90 Gear Oil or 00# Grease |
| IP Rating | IP65 | Double lip seals + Grass anti-wrap shield |
| Noise Level | < 75 dB(A) | Suitable for urban environments |
| Operating Temp | -20°C to +85°C | All-season outdoor operation |
| Mounting Holes | 100mm x 100mm / 140mm x 140mm | Universal mounting pattern |
| Weight | 8 kg – 25 kg | Depends on model size |
Engineer’s Insight: Why Premium Models Prefer Spiral Bevel Gears?
1. Straight Bevel Gears: Economical but Noisy
Straight bevel gears are widely used in entry-level mowers due to low manufacturing costs. However, straight gears engage with “full tooth length” instantaneous contact. This impact-style transmission generates significant vibration and sharp noise. At high speeds (e.g., 2000 RPM), this noise affects operator comfort and accelerates pitting wear on the gear surface.
2. Spiral Bevel Gears: The Choice for Silence and Durability
EVER-POWER’s MD-Series gearboxes primarily utilize Spiral Bevel gears. The tooth line is curved, and engagement starts from a single point and gradually expands to the full tooth face, engaging smoothly like tightening a screw.
Advantages Analysis:
- Ultra-Quiet: Noise is reduced by 10-15 dB compared to straight gears, making it perfect for Korean residential areas and resorts with strict noise regulations.
- High Load Capacity: More teeth are in contact simultaneously (high contact ratio), allowing them to withstand greater shock loads without chipping when hitting hard grass or small stones.
- Smooth Transmission: Minimal fluctuation in output speed ensures a more stable mower deck rotation and a cleaner, more aesthetic cut.
South Korea Compliance & Localization
- KS Safety Standard Certification: Our gearbox design fully complies with KS B agricultural machinery general safety standards. Specifically, for the input and output shaft guard interfaces, we have pre-designed mounting points that meet Korea’s FACT (Foundation of Agri. Tech. Commercialization and Transfer) inspection requirements, ensuring smooth machine certification.
- Terrain Adaptability: Korea has many hilly terrains, and lawn tractors often operate on slopes. Our gearboxes feature an optimized oil path design to ensure the upper bearings receive sufficient lubrication even at tilt angles up to 25°, preventing burnout due to oil starvation.
- Maintenance-Free Design: Considering the high labor costs in Korea, we launched a “Maintenance-Free” version utilizing semi-fluid grease (00# Lithium base). This grease does not flow at room temperature, resists leakage, and requires no replacement for the life of the unit, greatly reducing the user’s maintenance burden.
Brand Comparison: EVER-POWER Core Advantages
| Core Feature | EVER-POWER MD-Series | Standard Market Gearbox | Low-End Aluminum Box |
|---|---|---|---|
| Gear Type | Spiral Bevel (Silent) | Straight Bevel (Noisy) | Sintered Straight (Fragile) |
| Sealing Performance | Double Lip Seal + Anti-Wrap Shield | Single Lip Seal | Standard Rubber Ring |
| Heat Dissipation | Reinforced Ribs | Smooth Surface | No Heat Design |
| Bearing Config | Tapered Roller (Heavy Duty) | Deep Groove Ball | Oil Bushing |
Disclaimer: This comparison is based on general market product specifications. EVER-POWER is committed to providing high-performance agricultural drivetrain components that exceed industry standards.
Global Case Studies: Engineer’s Field Notes
Case 1: Yongin, Korea – Golf Course Turf Maintenance
Pain Point: “Our premium course requires early morning maintenance. The mowers we used previously were too noisy, leading to complaints from VIP guests. Also, the original gearboxes overheated after 4 hours of continuous work.”
EVER-POWER Solution: Replaced them with MD-60 gearboxes featuring precision-ground spiral bevel gears and used fully synthetic high-temp gear oil.
Outcome: Noise was reduced by 12 dB, making the operation sound much softer. Oil temperature was controlled within 75°C, completely solving the noise disturbance issue during morning shifts.
Case 2: Brisbane, Australia – Municipal Green Space Contractor
Pain Point: Park lawns often hide branches and debris. The output shafts of original gearboxes frequently snapped upon hitting hard objects.
EVER-POWER Solution: Provided a customized impact-resistant gearbox, upgrading the output shaft material to 40Cr quenched and tempered steel, and increasing the shaft diameter.
Outcome: In the subsequent quarter of high-intensity work, zero shaft breakage incidents occurred, reducing maintenance costs by 60%.

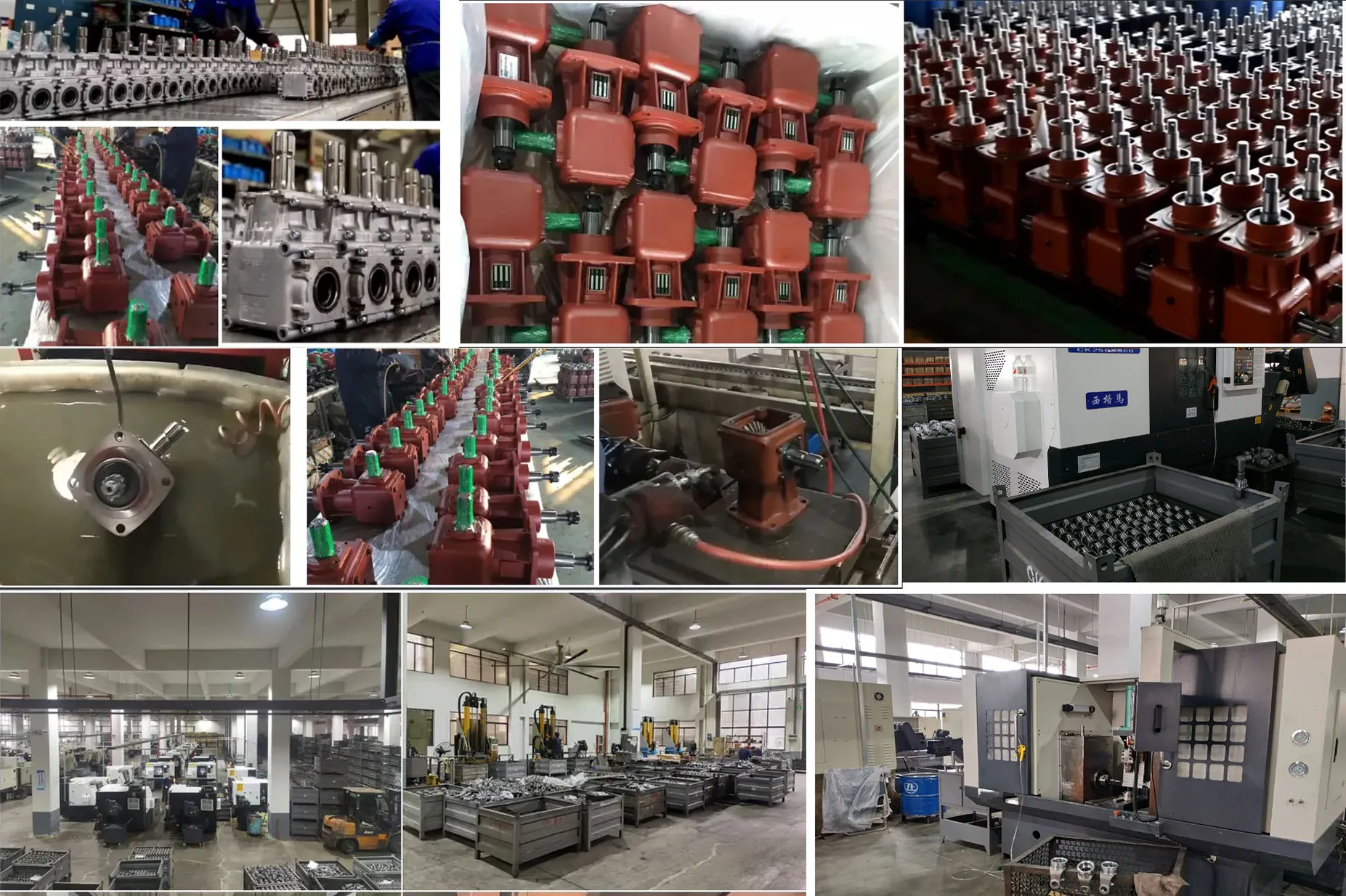

Our modern factory equipped with full gear testing and run-in facilities.
When Should You Replace Your Mower Gearbox?
- ⚠️ Blade Wobble: Shake the blade holder by hand; if there is noticeable play or wobble, the output bearings are severely worn.
- ⚠️ Abnormal Whining: Sharp metallic whining sounds during operation usually indicate pitting on the gear mesh or lack of oil.
- ⚠️ Bottom Leakage: Oil dripping found on top of the blade deck indicates bottom seal failure, which contaminates the turf and leads to dry gear grinding.
- ⚠️ Housing Overheating: If the housing is too hot to touch (over 80°C) after 30 minutes of normal operation, internal friction is abnormal.
Frequently Asked Questions (FAQ)
Q1: What is the difference between spiral bevel gears and straight bevel gears?
Spiral bevel gears engage more smoothly with a larger contact area, resulting in lower noise and higher load capacity, making them suitable for high-end commercial models. Straight bevel gears are cheaper but noisier and have lower shock resistance, mostly used for residential small machines.
Q2: Are your gearboxes shipped filled with oil?
Generally, for shipping safety, we ship without oil (except for maintenance-free grease models). Please ensure to fill with the specified grade (e.g., SAE 90) gear oil to the level line before installation.
Q3: Can I install the gearbox on a tilted mower deck?
Yes, but pay attention to lubrication. With oil bath lubrication, excessive tilt angles might cause oil starvation in the upper bearings. For steep angle applications, we recommend choosing models with semi-fluid grease or customizing a special oil path structure.
Q4: How long is shipping to South Korea?
We have efficient inventory management. Standard model assembly and testing take 3-5 days, and sea freight to Busan or Incheon takes 2-4 days. Typically, you receive the goods within 2 weeks of ordering.
Q5: Can you provide matching drive shafts?

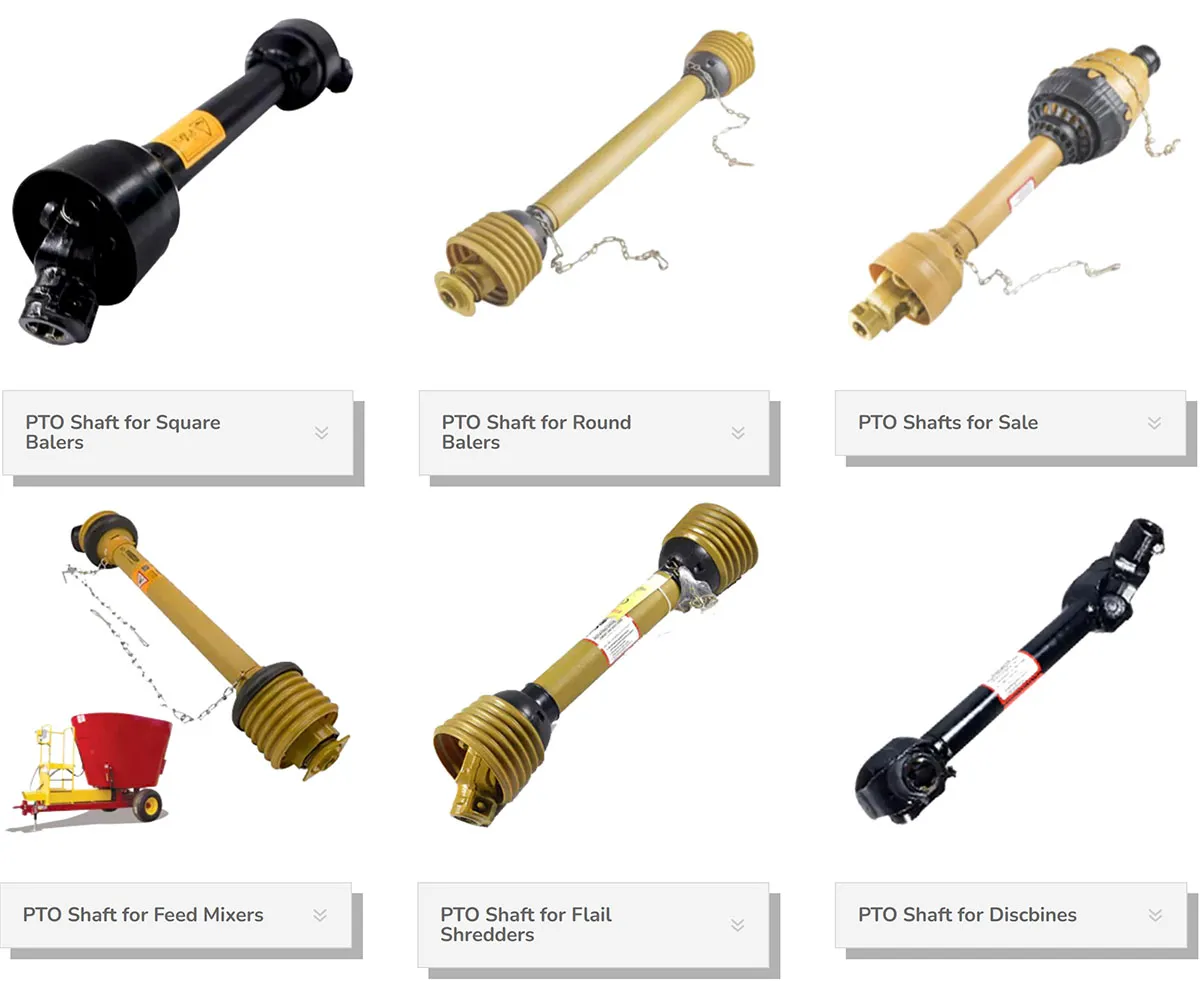

Certainly. We offer complete drivetrain solutions, including various specifications of PTO shafts (with shear bolts or slip clutches), ensuring perfect matching with the gearbox.
Related Products for Turf Care Machinery
Why Choose EVER-POWER?
In the garden machinery sector, EVER-POWER is not just a gearbox manufacturer but your trusted power transmission expert. We understand that for golf courses and high-end lawn maintenance, equipment silence and cutting evenness are paramount. Therefore, we introduce advanced gear profiling technology in our manufacturing process, ensuring gear meshing reaches an ideal state of “zero impact.”
We possess over 20 years of experience manufacturing agricultural pto gearboxes, exporting widely to high-end markets in Europe, America, and Asia. For Korean clients, we offer localized technical support and rapid-response logistics services. Our factory is ISO 9001 quality system certified, and every mower deck gearbox undergoes 100% noise testing and leak detection before leaving the factory. Choosing EVER-POWER is choosing professionalism, efficiency, and peace of mind.
Ready to Upgrade Your Mowing Experience?
Say goodbye to noise and vibration, and embrace efficient, smooth power transmission. Contact EVER-POWER today for a custom mower deck gearbox quote tailored for the Korean market.
